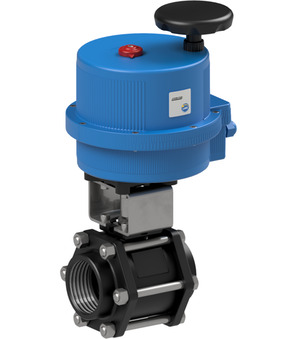

Ball valve with electrical actuator 8E004002-21/2"

Ball valve with electrical actuator 8E004002-21/2"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 21/2"; DN 65mm; Pressure range 0-16bar; Length 153mm; Operating time 27s; Voltage 24VAC/DC

Kugelhahn mit Elektroantrieb Serie 8E004
Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.47 Kg
Short Itemnumber: 8E004002212
https://www.stasto.si/web/image/product.template/76074/image_1920?unique=f798bc4

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 21/2"; DN 65mm; Pressure range 0-16bar; Length 153mm; Operating time 27s; Voltage 24VAC/DC

1.286,90 € 1286.9 EUR 1.286,90 €

cena na zahtevo

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Female thread RP 2 1/2"
DN 65 mm
Length 153 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
Female thread RP 2 1/2"
DN 65 mm
Length 153 mm
Operating time 27 s
Voltage 24VAC/DC

8E004002-21/2"

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Ball valve made of steel 21/2"-65-0-16-153
713000-21/2" x 1.0 Pcs
Ball valve made of steel 21/2"-65-0-16-153
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
Electrical actuator VB110-L
VB110-L x 1.0 Pcs
Electrical actuator VB110-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
