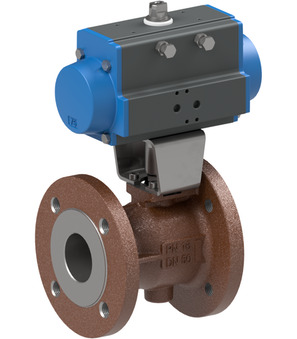

Flanged ball valve with pneumatic actuator BA040-025-D0

Flanged ball valve with pneumatic actuator BA040-025-D0

Flanged ball valve with pneumatic actuator Series BA040; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 125mm; Length EN558-1R14; Actuator PAD052

Flanschkugelhahn mit Druckluftdrehantrieb Serie BA040
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA040
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.55 Kg
Short Itemnumber: BA040025D0
https://www.stasto.si/web/image/product.template/121798/image_1920?unique=477d5fc

flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 25mm; length 125mm; length EN558-1R14; actuator PAD052

451,60 € 451.6 EUR 451,60 €

cena na zahtevo

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 25 mm
Length 125 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 25 mm
Length 125 mm

BA040-025-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve BA040-25-L-01
BA040-25-L-01 x 1.0 Pcs
Flanged ball valve BA040-25-L-01
Flanged ball valve Series BA040-L-F; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 25mm; Length 125mm; Length EN558-1R14; Flange ISO5211 F04
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3001 x 1.0 Pcs
RI3001
Mounting bracket; F05/F03-F04; 11-8
