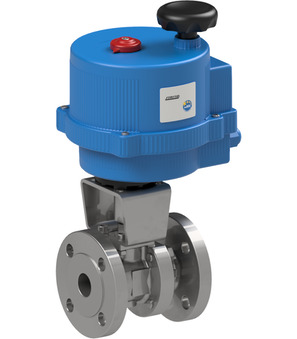

Flanged ball valve with electrical actuator BA110-65-CL-01

Name: Flanged ball valve with electrical actuator BA110-65-CL-01
Brand: STASTO
SKU: BA110-65-CL-01
Price: 2641.2 EUR
Availability: InStock

Flanged ball valve with electric actuator Series BA110-CL-01; Overall length according to EN558−1R27; Housing, Ball 1.4408; Ball seal PTFE-graphite reinforced; Spindle seal Graphoil/FKM/PTFE; Medium temperature -20...+160°C; DN 65mm; Print area 0-16bar; Flange PN16; Installation length 170mm; V-Ball 30-60°; Electric drive VB110-L-P0S; Operating time 27s; Tension 24VAC/DC; incl. Positioner 4-20mA/0-10V

Intrastat No.: 84818081
Country of origin: Italy

Short Itemnumber: BA11065CL01

2.641,20 € 2641.2 EUR 2.641,20 €

excl. tax

DN
- 65 mm
Length
- 170 mm
Flange
- PN16
Voltage
- 24VAC/DC
Pressure range
- 0...16 bar
Actuator
- VB110L
Operating time
- 27 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	65 mm
Flange	PN16
Length	170 mm

All specifications (7)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	65 mm
Flange	PN16
Length	170 mm
Operating time	27 s
Voltage	24VAC/DC
Brand	STASTO

BA110-65-LLD-A-01 x 1.0 Pcs

Flanged ball valve BA110-65-LLD-A-01

Flanged ball valve Series BA110-LLD-A-01; ATEX II 2 G/D; Fire-Safe; TA-Luft; Lockable version; Overall length According to EN558−1R27; Full passage; Housing, Ball 1.4408; Ball seal PTFE-graphite reinforced; Spindle seal Graphoil/FKM/PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Flange PN16; Installation length 170mm; V-Ball 30-60°

VB110-L-P0S x 1.0 Pcs

Electrical actuator VB110-L-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

RI3522 x 1.0 Pcs
