BADA-065-CITV-D0-EB0X01

BADA-065-CITV-D0-EB0X01

BADA-065-CITV-D0

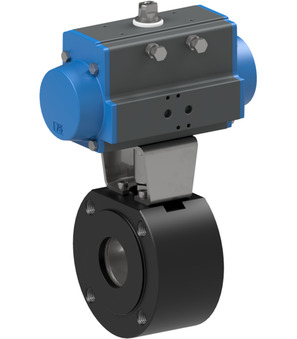

flanged ball valve with pneumatic actuator series BADA; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 65mm; length 103mm; actuator PAD085
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 20.698 Kg
Short Itemnumber:BADA065CITVD0EB0X01
https://www.stasto.si/web/image/product.template/236677/image_1920?unique=d9024cc

BADA-065-CITV-D0
flanged ball valve with pneumatic actuator series BADA; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 65mm; length 103mm; actuator PAD085
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

997,90 € 997.9 EUR 997,90 €

cena na zahtevo

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
DN 65 mm
Length 103 mm
Designs
Switch type Crouzet 831613
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...16 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD085
