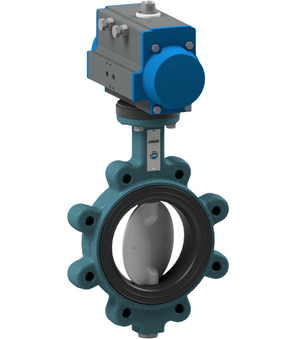

Butterfly valve with pneumatic actuator BULB-200-DSC-D32

Butterfly valve with pneumatic actuator BULB-200-DSC-D32

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 200mm; Length 60mm; Flange PN10; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 31.935 Kg
Short Itemnumber: BULB200DSCD32
https://www.stasto.si/web/image/product.template/109698/image_1920?unique=cc80f6f

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 200mm; length 60mm; flange PN10; actuator PAD085

1.109,30 € 1109.3 EUR 1.109,30 €

cena na zahtevo

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
DN 200 mm
Length 60 mm
Flange PN10
Documents
Data sheets, drawings and CAD files
Pressure range 0...6bar
DN 200 mm
Length 60 mm
Flange PN10

BULB-200-DSC-D32

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1

CAD / 3D

1
BULB-200-DSC-B x 1.0 Pcs
BULB-200-DSC-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 200mm; Length 60mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
APKT017300 x 1.0 Pcs
APKT017300
Mounting bracket For butterfly valve; DN200 - F07/F10
