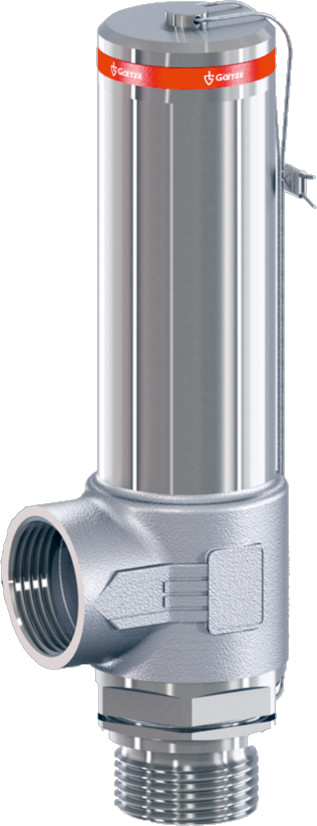

Safety valve SV30-10W-18-16-3B

Safety valve SV30-10W-18-16-3B

Safety valve; For cryogenic applications; Inlet body 1.4404; Outlet body 1.4408; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1"; DN 18mm; Outlet female G11/2"; Set pressure 16 Bar; Incl. TÜV-Inspection certificate EN-10204-3.2 Inspection certificate EN-10204-3.1; For material

Intrastat No.: 84814090
Country of origin: Germany Made in Europe
Weight: 6.4 Kg
Short Itemnumber: SV3010W18163B
https://www.stasto.si/web/image/product.template/171487/image_1920?unique=1a28827

Safety valve; For cryogenic applications; Inlet body AISI 316L; Outlet body AISI 316; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1"; DN 18mm; Outlet female G11/2"; Set pressure 16 Bar; Incl. TÜV-Inspection certificate EN-10204-3.2 Inspection certificate EN-10204-3.1; For material

2.393,50 € 2393.5 EUR 2.393,50 €

cena na zahtevo

excl. tax
  • DN
  • Inlet male
  • Outlet female
  • Set pressure

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 18 mm
Inlet male G 1"
Outlet female G 1 1/2"
Set pressure 16 bar
Documents
Data sheets, drawings and CAD files
DN 18 mm
Inlet male G 1"
Outlet female G 1 1/2"
Set pressure 16 bar

SV30-10W-18-16-3B

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
No spare parts are available for this product.
