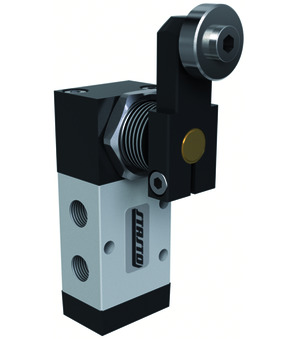

3/2-way valve Series VCLL; Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N; Connection 1/8"; Function NC
Country of origin: Italy
Weight: 0.19 Kg
Short Itemnumber: VCLL326M8
3/2-way valve Series VCLL; Nominal diameter 6mm; Pressure range 0...10bar; Flow rate 650Nl/min; Actuation Roller/spring; Operating force at 6 bar: 22N; Connection 1/8"; Function NC
Technical specifications
| Connection | 1/8" |
|---|---|
| Actuation | Unidirectional lever/spring |
| Pressure range | 0...10bar |
| Flow rate | 650Nl/min |
| Connection | 1/8" |
| Actuation | Unidirectional lever/spring |
| Pressure range | 0...10bar |
| Flow rate | 650Nl/min |
| Function | NC |
| DN | 6 mm |
| Actuating force at 6 bar | 22 N |
| Exhaust port | 1/8" |
VCLL326M8
