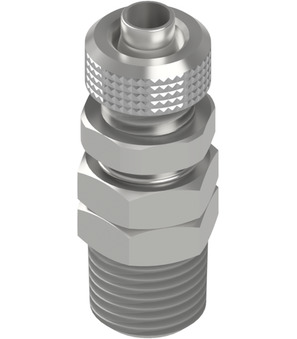

Vijčani priključci
| promjer | Vanjski navoj | Vrsta |
|---|---|---|
| 12/10 mm | R 3/8" | SC12C-12-38-N-360 |
Zakretni kutni uvodnik s navojnim priključkom Serija SC16-360
Mjed niklan; Tlak -1…18bar; Navoj cilindričan
Grundversion
| promjer | Vanjski navoj | Vrsta | Sekvenca |
|---|---|---|---|
| 6/4 mm | M5 | SC16-06-M5-N-0-360 | 5310008 |
| 6/4 mm | G 1/8" | SC16-06-18-N-0-360 | 5310009 |
| 6/4 mm | G 1/4" | SC16-06-14-N-0-360 | 5310010 |
| 8/6 mm | G 1/8" | SC16-08-18-N-0-360 | 5310011 |
| 8/6 mm | G 1/4" | SC16-08-14-N-0-360 | 5310012 |
| 10/8 mm | G 1/4" | SC16-10-14-N-0-360 | 5310013 |
Kutni uvrtnim spoj Serija SC16C
Mjed niklan; Tlak -1…25bar; Konusni navoj
Grundversion
| promjer | Vanjski navoj | Vrsta | Sekvenca |
|---|---|---|---|
| 4/2,5 mm | M5 | SC16C-04-M5-N | 5320000 |
| 4/2,5 mm | R 1/8" | SC16C-04-18-N | 5320001 |
| 5/3 mm | R 1/8" | SC16C-05-18-N | 5320002 |
| 6/4 mm | R 1/8" | SC16C-06-18-N | 5320003 |
| 6/4 mm | R 1/4" | SC16C-06-14-N | 5320004 |
| 6/4 mm | R 3/8" | SC16C-06-38-N | 5320005 |
| 8/6 mm | R 1/8" | SC16C-08-18-N | 5320006 |
| 8/6 mm | R 1/4" | SC16C-08-14-N | 5320007 |
| 8/6 mm | R 3/8" | SC16C-08-38-N | 5320008 |
| 10/8 mm | R 1/8" | SC16C-10-18-N | 5320009 |
| 10/8 mm | R 1/4" | SC16C-10-14-N | 5320010 |
| 10/8 mm | R 3/8" | SC16C-10-38-N | 5320011 |
| 10/8 mm | R 1/2" | SC16C-10-12-N | 5320012 |
