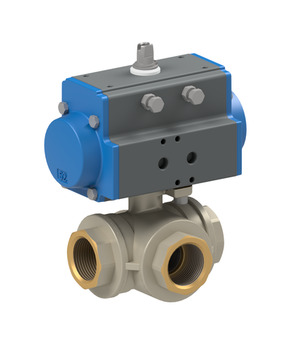

Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAL1, BAT1

3-potna-izvedba; troslojno tesnjenje; ohišje, krogla medenina; tesnila PTFE/FKM/EPDM; dvosmerno delujoč pogon; Krmilni tlak 5,5...8bar; temperatura medija -20...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAL1, BAT1
Grundversion
notranji navoj DN dolžina Krogelna luknja območje tlaka napetost Izvedba Tip stikala Kontaktni material Material ohišja Vrsta Sequence
RP 1/4" 8 mm 67 mm T 0...30 bar - - - - - BAT1-002-BLTV-D0 24980000
RP 1/4" 8 mm 67 mm T 0...30 bar - - - - - BAT1-002-BLTV-D0B 24980002
RP 1/4" 8 mm 67 mm L 0...30 bar - - - - - BAL1-002-BLTV-D0 24980010
RP 1/4" 8 mm 67 mm L 0...30 bar - - - - - BAL1-002-BLTV-D0B 24980012
RP 3/8" 10 mm 67 mm T 0...30 bar - - - - - BAT1-003-BLTV-D0 24980020
RP 3/8" 10 mm 67 mm T 0...30 bar - - - - - BAT1-003-BLTV-D0B 24980022
RP 3/8" 10 mm 67 mm L 0...30 bar - - - - - BAL1-003-BLTV-D0 24980030
RP 3/8" 10 mm 67 mm L 0...30 bar - - - - - BAL1-003-BLTV-D0B 24980032
RP 1/2" 15 mm 77 mm T 0...30 bar - - - - - BAT1-004-BLTV-D0 24980040
RP 1/2" 15 mm 77 mm T 0...30 bar - - - - - BAT1-004-BLTV-D0B 24980042
RP 1/2" 15 mm 77 mm L 0...30 bar - - - - - BAL1-004-BLTV-D0 24980050
RP 1/2" 15 mm 77 mm L 0...30 bar - - - - - BAL1-004-BLTV-D0B 24980052
RP 3/4" 20 mm 87 mm T 0...30 bar - - - - - BAT1-005-BLTV-D0 24980060
RP 3/4" 20 mm 87 mm L 0...30 bar - - - - - BAL1-005-BLTV-D0 24980068
RP 1" 25 mm 105 mm T 0...16 bar - - - - - BAT1-006-BLTV-D0 24980077
RP 1" 25 mm 105 mm L 0...16 bar - - - - - BAL1-006-BLTV-D0 24980085
RP 1 1/4" 32 mm 122,5 mm T 0...10 bar - - - - - BAT1-007-BLTV-D0 24980094
RP 1 1/4" 32 mm 122,5 mm L 0...10 bar - - - - - BAL1-007-BLTV-D0 24980102
RP 1 1/2" 40 mm 138,5 mm T 0...10 bar - - - - - BAT1-008-BLTV-D0 24980110
RP 1 1/2" 40 mm 138,5 mm L 0...10 bar - - - - - BAL1-008-BLTV-D0 24980118
RP 2" 50 mm 166 mm T 0...10 bar - - - - - BAT1-009-BLTV-D0 24980126
RP 2" 50 mm 166 mm L 0...10 bar - - - - - BAL1-009-BLTV-D0 24980134
Varianten
notranji navoj DN dolžina Krogelna luknja območje tlaka napetost Izvedba Tip stikala Kontaktni material Material ohišja Vrsta Sequence
RP 1/4" 8 mm 67 mm T 0...30 bar 24VDC / 48V/50-60Hz standard - - - BAT1-002-BLTV-D0B-ABS51-C001-03-C002-31-6 24980003
RP 1/4" 8 mm 67 mm T 0...30 bar 24VDC / 48V/50-60Hz z vgrajeno LED-rumeno in VDR - - - BAT1-002-BLTV-D0B-ABS51-C001-03-C002-31-LV-2 24980004
RP 1/4" 8 mm 67 mm T 0...30 bar 24VDC / 48V/50-60Hz z vgrajeno LED-rumeno, VDR in PVC kablom (2 m) - - - BAT1-002-BLTV-D0B-ABS51-C001-03-C002-31-LVCV20-2 24980005
RP 1/4" 8 mm 67 mm T 0...30 bar 230V/50-60Hz standard - - - BAT1-002-BLTV-D0B-ABS51-C001-22-C002-31-6 24980006
RP 1/4" 8 mm 67 mm T 0...30 bar 230V/50-60Hz z vgrajeno LED-rumeno in VDR - - - BAT1-002-BLTV-D0B-ABS51-C001-22-C002-31-LV-1 24980007
RP 1/4" 8 mm 67 mm T 0...30 bar 230V/50-60Hz z vgrajeno LED-rumeno, VDR in PVC kablom (2 m) - - - BAT1-002-BLTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 24980008
RP 1/4" 8 mm 67 mm L 0...30 bar 24VDC / 48V/50-60Hz standard - - - BAL1-002-BLTV-D0B-ABS51-C001-03-C002-31-6 24980013
RP 1/4" 8 mm 67 mm L 0...30 bar 24VDC / 48V/50-60Hz z vgrajeno LED-rumeno in VDR - - - BAL1-002-BLTV-D0B-ABS51-C001-03-C002-31-LV-2 24980014
RP 1/4" 8 mm 67 mm L 0...30 bar 24VDC / 48V/50-60Hz z vgrajeno LED-rumeno, VDR in PVC kablom (2 m) - - - BAL1-002-BLTV-D0B-ABS51-C001-03-C002-31-LVCV20-2 24980015
RP 1/4" 8 mm 67 mm L 0...30 bar 230V/50-60Hz standard - - - BAL1-002-BLTV-D0B-ABS51-C001-22-C002-31-6 24980016
RP 1/4" 8 mm 67 mm L 0...30 bar 230V/50-60Hz z vgrajeno LED-rumeno in VDR - - - BAL1-002-BLTV-D0B-ABS51-C001-22-C002-31-LV-1 24980017
RP 1/4" 8 mm 67 mm L 0...30 bar 230V/50-60Hz z vgrajeno LED-rumeno, VDR in PVC kablom (2 m) - - - BAL1-002-BLTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 24980018
RP 3/8" 10 mm 67 mm T 0...30 bar 24VDC / 48V/50-60Hz standard - - - BAT1-003-BLTV-D0B-ABS51-C001-03-C002-31-6 24980023
RP 3/8" 10 mm 67 mm T 0...30 bar 24VDC / 48V/50-60Hz z vgrajeno LED-rumeno in VDR - - - BAT1-003-BLTV-D0B-ABS51-C001-03-C002-31-LV-2 24980024
RP 3/8" 10 mm 67 mm T 0...30 bar 24VDC / 48V/50-60Hz z vgrajeno LED-rumeno, VDR in PVC kablom (2 m) - - - BAT1-003-BLTV-D0B-ABS51-C001-03-C002-31-LVCV20-2 24980025
RP 3/8" 10 mm 67 mm T 0...30 bar 230V/50-60Hz standard - - - BAT1-003-BLTV-D0B-ABS51-C001-22-C002-31-6 24980026
RP 3/8" 10 mm 67 mm T 0...30 bar 230V/50-60Hz z vgrajeno LED-rumeno in VDR - - - BAT1-003-BLTV-D0B-ABS51-C001-22-C002-31-LV-1 24980027
RP 3/8" 10 mm 67 mm T 0...30 bar 230V/50-60Hz z vgrajeno LED-rumeno, VDR in PVC kablom (2 m) - - - BAT1-003-BLTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 24980028
​
